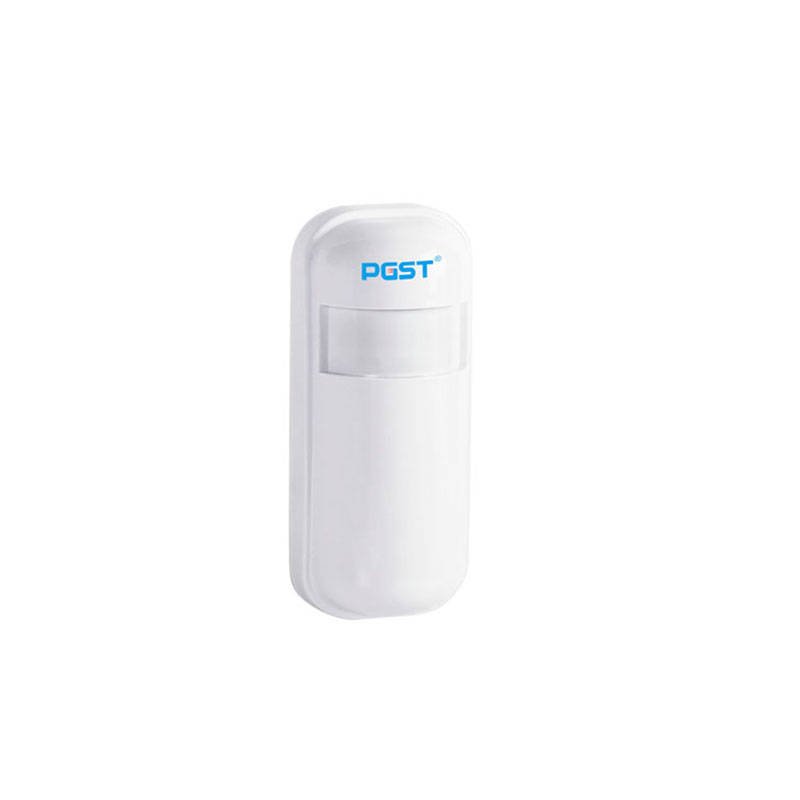

PIR Sensor PA-92
The product from PGST is an extremely powerful device. The moment a thief enters the house, the sensor will detect movement and the alarm will power on and the owner will be notified.
Signal range
The angle of the sensor installed in the living room is 110° at a distance of 12m. On the other hand, if the sensor is installed over a door or a window, the angle that the device throws is 15° and the distance reaches 8m.
Power supply
The detector is powered by two 1.5V AAA batteries. This way, you save on your electricity bill. Moreover, the device is connected to the alarm host. If an alarm goes off in the building, the host will automatically send a notification to the owner, and through the app, you will be able to keep track of the situation no matter where you are.
Specification
| Brand | PGST |
|---|---|
| Model | PA-92 |
| Working voltage | 3V AAA x2 alkaline battery |
| Working current | ? 25mA |
| Static current | ? 30uA |
| Emission frequency | 315 MHz / 433 MHz (ASK) 868 MHz (FSK) |
| Emission power | ? 10 dB |
| Emission distance | ? 80 m (open space) |
| Detecting distance | 8 m ~ 12 m (25 ?) |
| Working temperature | -10 ? ~ 55 ? |
| Installation | a wall |
| Installation height | 1,8 ~ 2,2 m |
| Detecting angle | 110 ° |
| App | Tuya |
| Tömeg | 0,080 kg |
|---|
