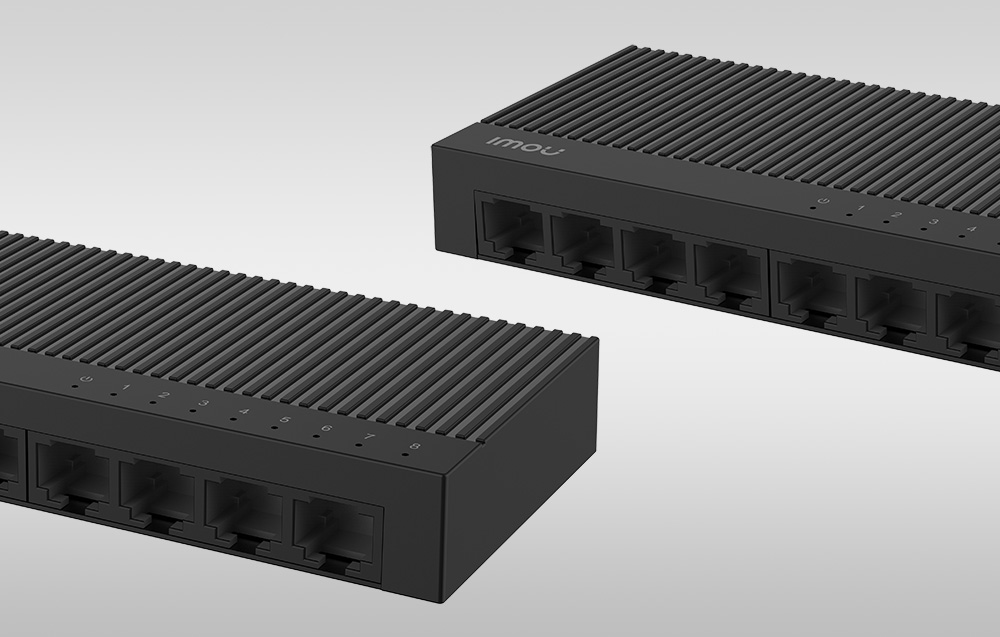

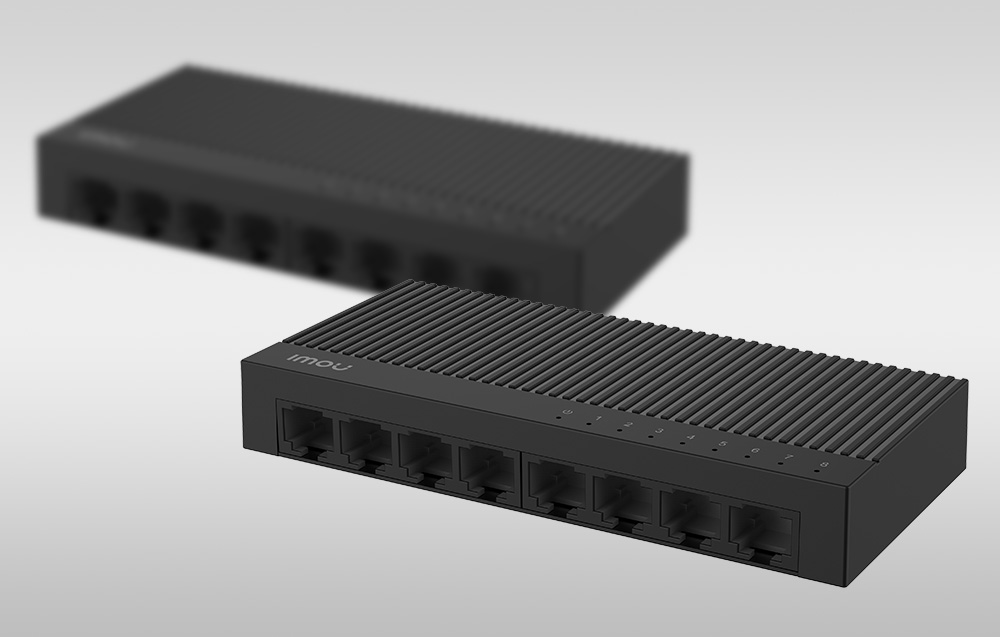

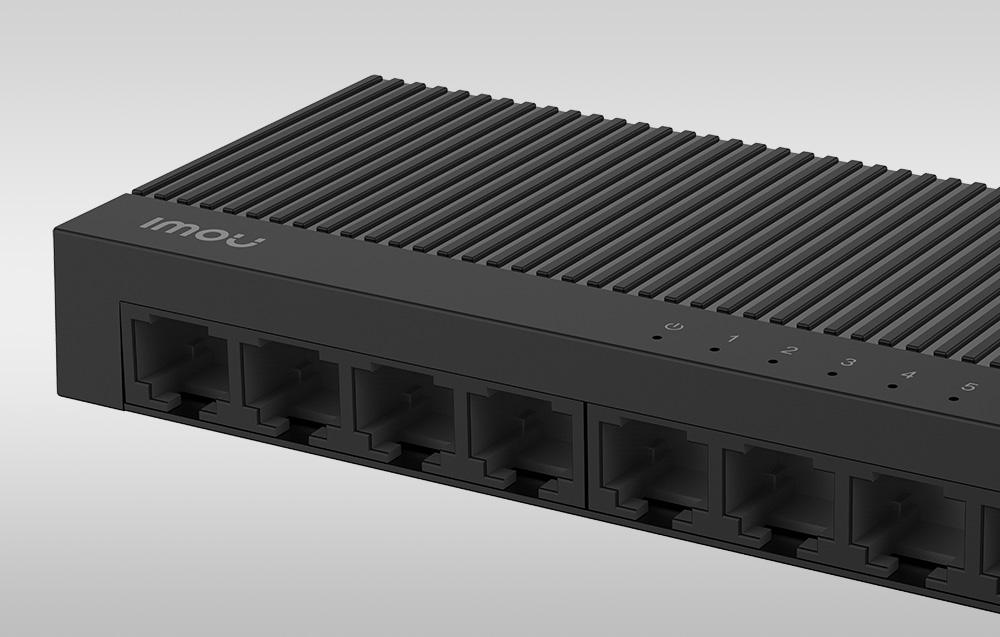

8-Port 100 Mb/s IMOU SF108C LAN Switch
The IMOU SF108C LAN Switch provides fast and stable network connectivity with its 8 RJ45 ports. It offers automatic speed negotiation in the range of 10/100 Mbps, and the Auto MDI/MDIX feature eliminates the need for crossover cables. Additionally, the 802.3X Flow Control protocol ensures efficient data flow control. The device is easy to install and hassle-free, and the Plug & Play feature ensures user convenience.
The SF108C model provides high throughput and connection flexibility. It is equipped with 8 RJ45 ports, making it perfect for managing heavy data traffic and ensuring the performance required by modern network applications. All ports support Auto-Negotiation, allowing for automatic data transmission speed adjustment from 10 to 100 Mbps. As a result, the switch is widely compatible with various devices and allows for connection speed optimization based on current needs, ensuring smooth and efficient network operation, whether you are sending large files, streaming high-resolution videos, or using advanced applications.
Effective Data Flow Management
The device supports the advanced 802.3X Flow Control feature, ensuring stability and efficiency in data flow within the network. The flow control mechanism employed allows for managing and coordinating data transmission between the switch and connected devices, which is crucial during high network loads. As a result, the switch effectively prevents data packet loss and reduces the risk of network congestion—making it an excellent solution for both advanced home applications and demanding business users.
The switch is unmanaged, translating into user-friendly operation without the need for complicated configuration. It offers a total throughput of 1.6 Gbps and a packet forwarding rate of 0.1488 Mpps per port. The packet buffer memory is 768 Kb, enabling efficient handling of network traffic. The device also supports Jumbo frames up to 2K and features a 2K MAC address table. It also provides protection against surges up to 2 KV in common mode and 1 KV in differential mode.
The Auto MDI/MDIX feature allows the IMOU switch to automatically detect the type of connected cable, eliminating the need for special crossover cables and simplifying the network configuration process. Another advantage is Plug & Play, a feature that ensures immediate device operation—no additional drivers need to be installed.
The device’s housing is made of high-quality plastic, providing both lightweight (86 g) and durability. The switch’s dimensions are only 133.2 x 62 x 21 mm, allowing for easy wall mounting or placement on a desk.
|8 ports 10/100 Mbps
|From 0°C to 40°C
|From 10% to 90%

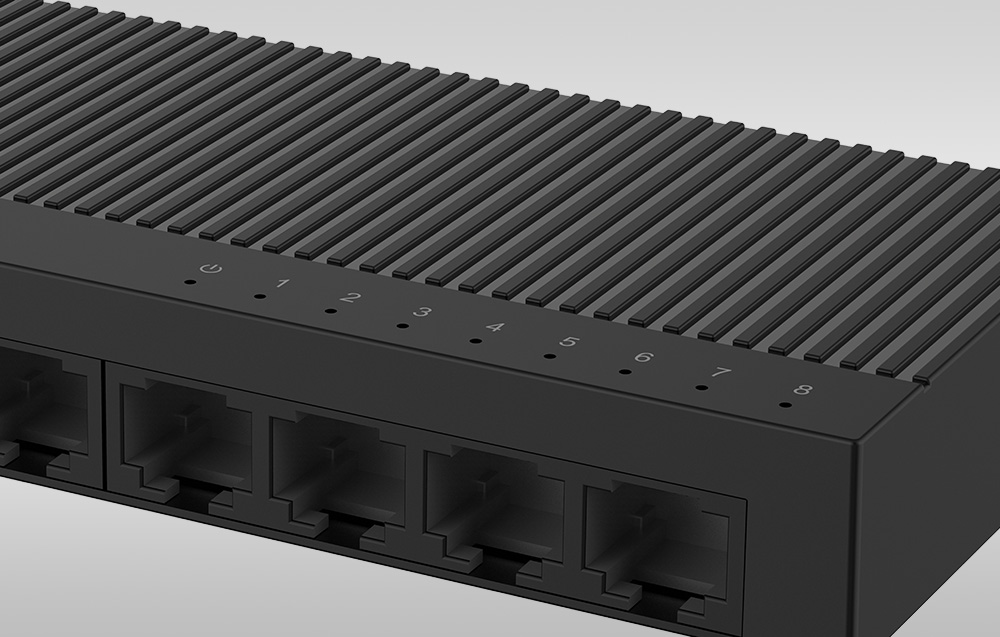

|1x Power, 8x Link/Activity
|Packet Forwarding Rate
|Packet Buffer Memory
|MAC Table Size
|Common Mode: 2 KV; Differential Mode: 1 KV
|133.2 x 62 x 21 mm
