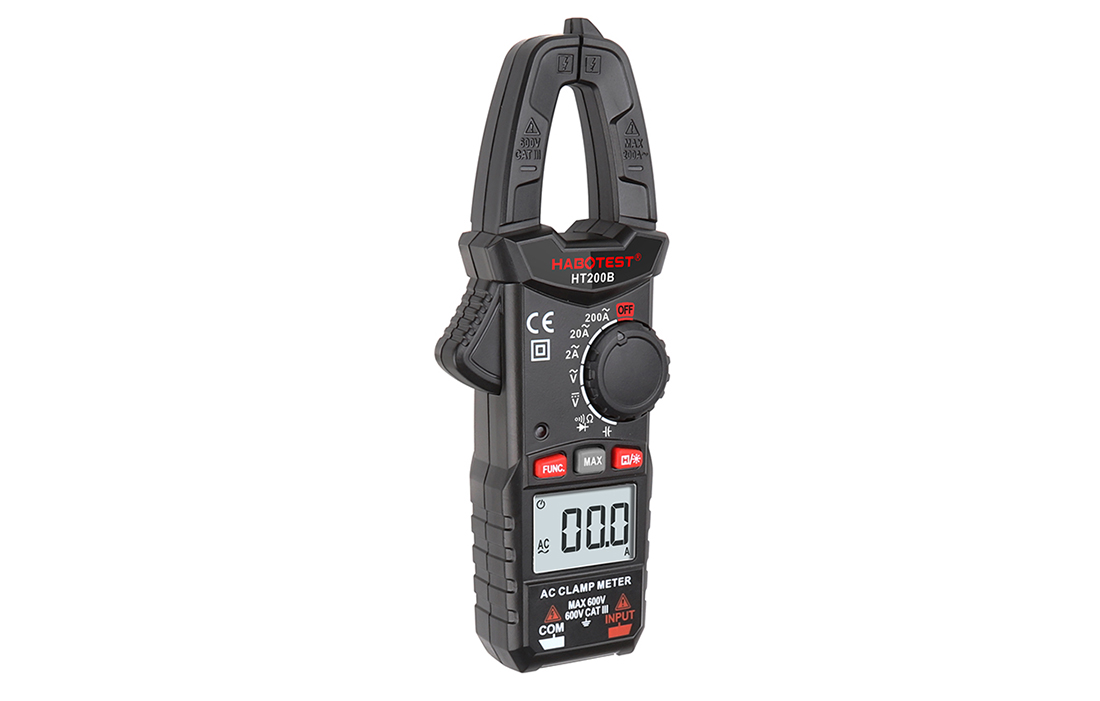

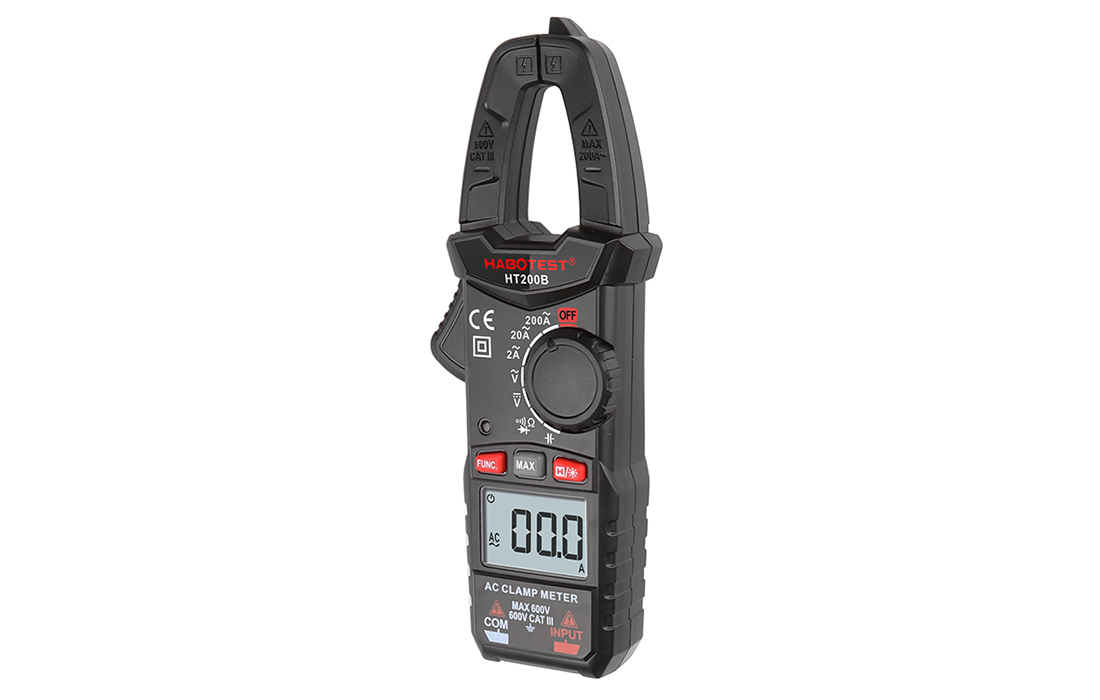

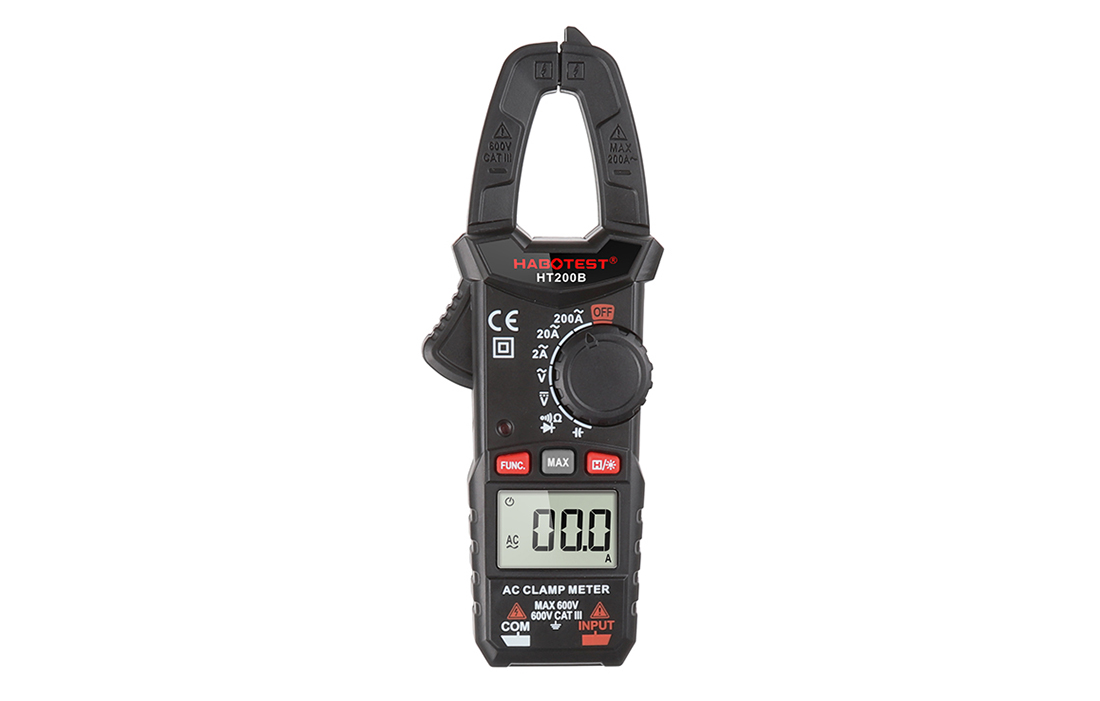

Habotest HT200B clamp meter
The HT200B compact clamp meter provides precise measurement of various parameters. It is equipped with a backlit HD display and jaws, which size is up to 18mm. Despite its small size it impresses with functionality. For its power supply it requires 2 AAA 1.5V batteries, which must be purchased separately – they are not included in the set.
Measures various parameters
This small device surprises with many possibilities. With its help you can accurately measure AC and DC voltage, AC current and resistance. You will also check continuity. You can also test diodes. The measurement results are displayed on the device’s easy-to-read HD screen. You will also find a low battery indicator on it, among other things. Moreover, the display backlight turns orange when the voltage value exceeds 80V or the current value exceeds 3A.
The device allows you to store data. Access to this and other functions is provided by convenient, intuitive buttons. The HT200B is also easy to operate with a built-in knob. With a jaw width of up to 18mm, the device can be used for a wide variety of applications. The meter is incredibly handy and lightweight – weighing only 150g. It fits perfectly in your hand and provides comfort of use. Its small size means you can always have it with you. Simply pack it in your bag and take it anywhere you need it.
|DC voltage||200mV/2V/20V/200V/600V ±(0.5%+5)|
|AC voltage||2V/20V/200V/600V, ±(1.0%+5)|
|AC current||2A/20A/200A, ±(2.5%+8)|
|Continuity||Yes, sound and light alarm|
|Low battery indicator||Yes|
|Power supply||2x AAA 1.5V batteries (included)|
|Safety||EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V|
