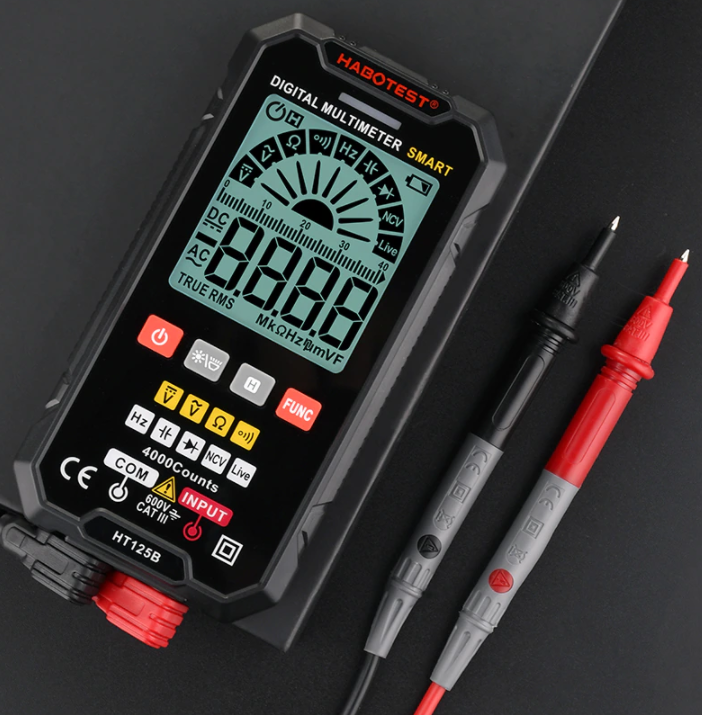

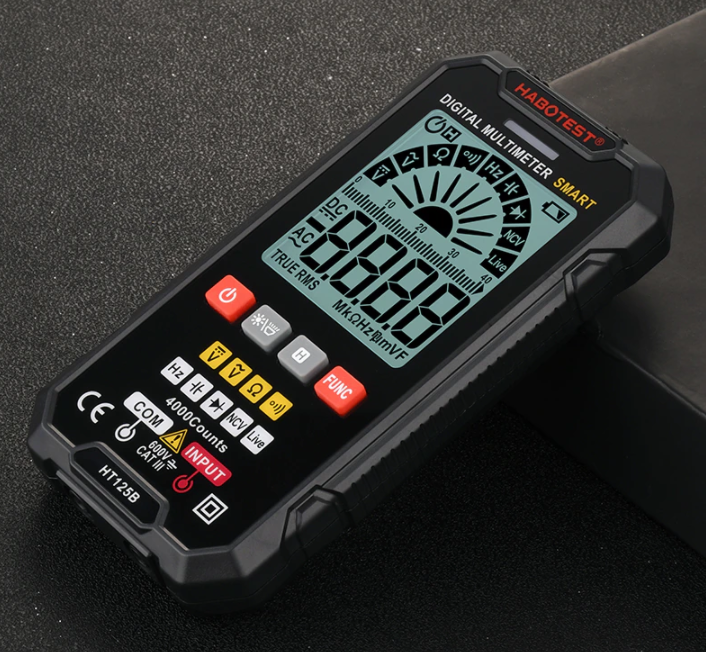

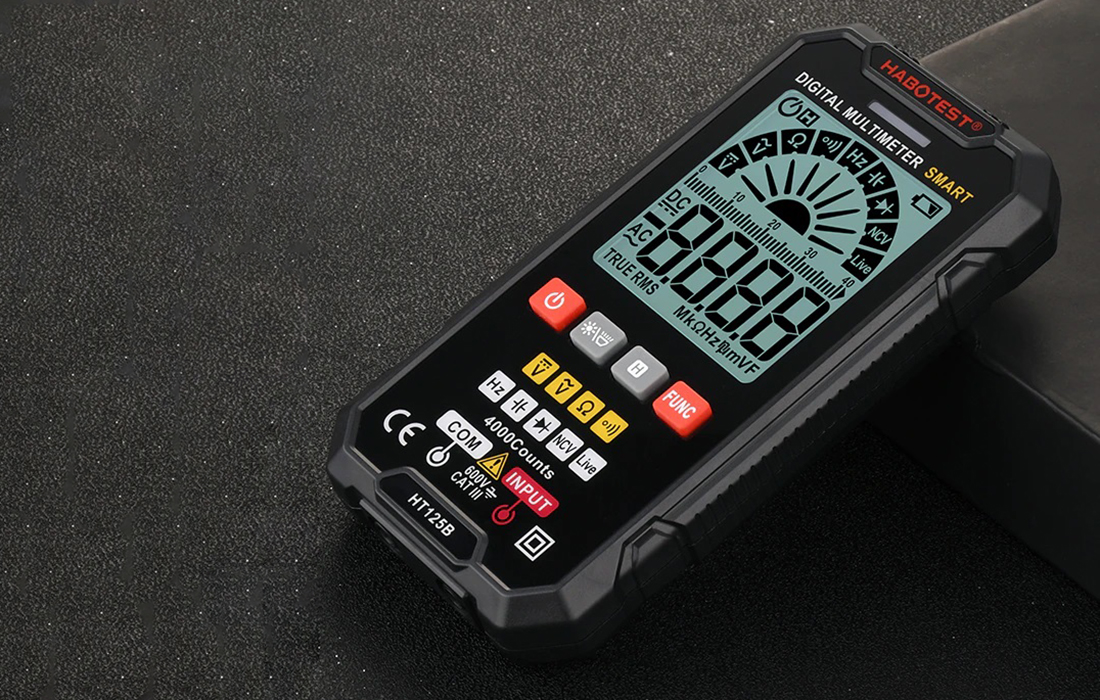

Universal Habotest HT125B multimeter
HT125B is a smart and rugged multimeter by Habotest. It features high precision measurements, which means you can also use it outdoors. Equipped with a large display and silicone buttons – it is simple and comfortable to use. Compact and lightweight – it also has a LED flashlight that allows you to work even in dark places. Two AAA 1.5V batteries are required to power it. However, these are not included and must be purchased separately. You can use it to measure voltage, resistance, capacitance, etc.
Convenience of use
Multimeter is designed to provide you with maximum comfort of use. Small and handy – its thickness is only 19 mm. Large display allows for convenient access to all important information. In addition, silicone buttons for easy operation of the device.
Functional and reliable
The Habotest brand multimeter is distinguished by its incredible precision. It accurately measures AC and DC voltage and current, resistance and capacitance, among other things. You can also check the activity of cables. With its help you can test diodes, check continuity and true RMS value. It also enables non-contact voltage detection (NCV). Use the arrows to change the mode of the device, then the LED indicator around the jack input port will light up green.
User-friendly

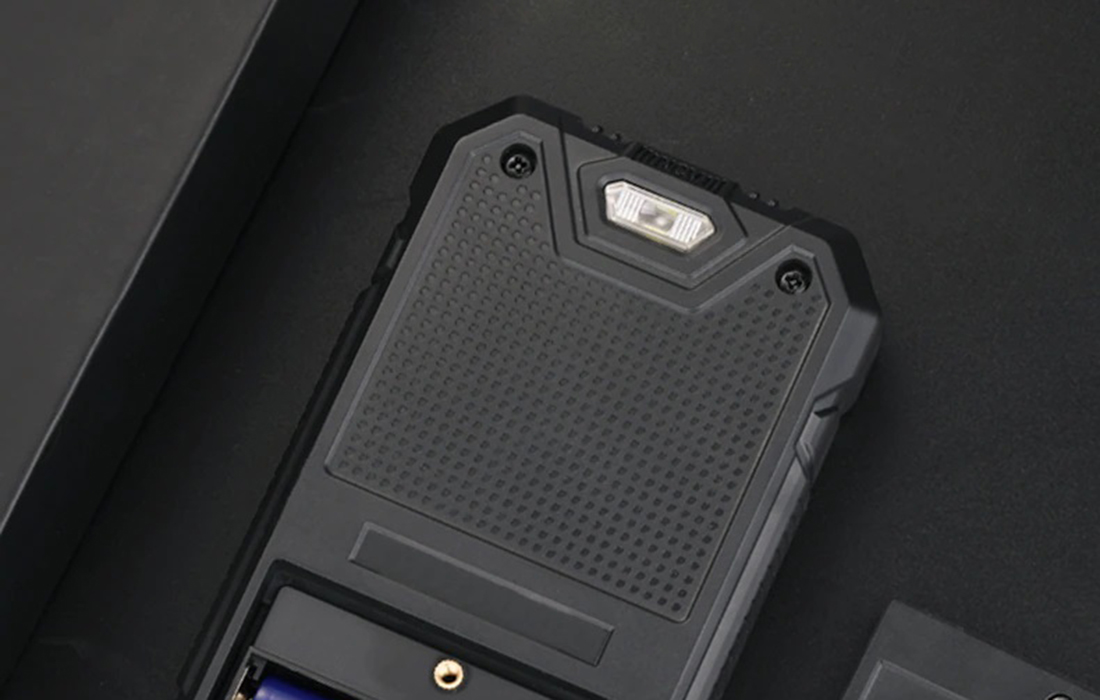

This is not the end of the multimeter’s advantages. The built-in LED flashlight will provide you with illumination when working in dark rooms. The soft protective case not only protects the unit from damage, but also makes it easy to transport and store. Replacing the HT125B battery is quick and easy, so you won’t have any problem.
Producer | Habotest | |
---|---|---|
Model | HT125A | HT125B |
DC voltage measurement range | 400mV/4V/40V/400V/600V | 400mV/4V/40V/400V/600V |
AC voltage measurement range | 4V/40V/400V/600V | AC 4V/40V/400V/600V |
Resistance measurement range | 400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ | 400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mkꭥ |
Capacitance measurement range | – | 4nF/40nF/400nF/4µF/40µF/400µF/4mF |
Frequency measurement range | 40Hz/400Hz/4kHz/40kHz | 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz |
Live Test | Yes, sound and light alarm | Yes, sound and light alarm |
NCV | Yes, sound and light alarm | Yes, sound and light alarm |
Diode testing | Yes, 0~2V | Yes, 0~2V |
Continuity | <50ꭥ | <50ꭥ |
Number of counts | 4000 | 4000 |
Data storage | Yes | Yes |
True RMS value | Yes | Yes |
Low battery indicator | Yes | Yes |
Automatic power off function | Yes | Yes |
Illumination | Yes | Yes |
Flashlight | Yes | Yes |
Power supply | 2x battery 1.5V AAA | 2x battery 1.5V AAA |
Safety | EN61010-1, CAT III 600V | – |
Weight | 125 g | – |

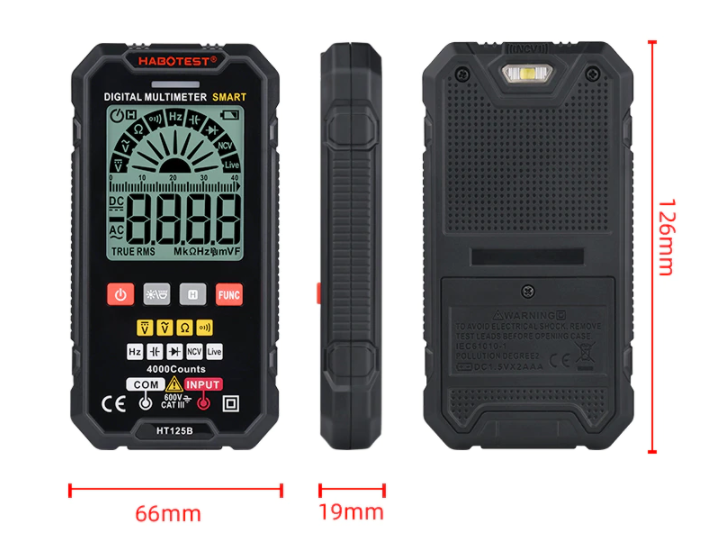

Dimensions | 126 x 66 x 19 mm | – |
